ISMATEC

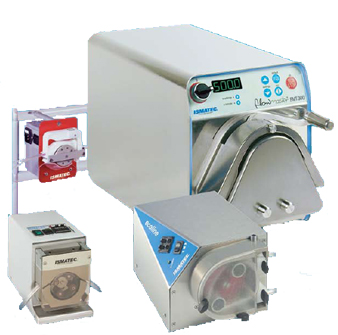

Multipurpose Tubing Pumps
Tubing pumps work on the peristaltic pump theory, where a roller (or several) compresses a tube forming a progressive cavity. This results in a gentle flow capable of developing respectable pressure, can handle particles, and eliminates virtually all wearing parts apart from the tube itself
With a wide variety of tubing materials available, finding a compatible material is not problem. Additionally many pump heads can be of a multi-channel design, allowing up to 24 tubes to be driven off a single motor.
Below you will find a brief overview of the tubing pump range available, but with many custom/OEM options also availalbe it is advisable to consult with the sales staff at Process Pumps about your requirements.
Process Pumps also stocks a wide range of tubing sizes and materials which may suit your existing tube pumps. If you require spare parts please don't hesitate to contact the sales staff for assistance.
IP, IPC, REGLO, and Flowmaster Tube Pumps
IPC/IPC-N and IP/IP-N tubing pump
Up to 24 channels per pump
0.002 to 44ml/min per channel (IPC & IP)
0.4µl/min to 11ml/min per channel (IPC-N & IP-N)
8 rollers per channel for accurate smooth flow
up to 1.0bar discharge pressure (may be increased depending on tube selection)
Membrane keypad and LED display
Microprocessor control (IPC & IPC-N)
Standalone operation or input control available
Reglo Analogue/Digital tubing pump
Compact dispensing pump utilising 'clink 'n' go' cassettes for rapid tube changeover
2 or 4 channel capable
6, 8, or 12 rollers per channel
Full calibartion capable
1% speed resoltion (analogue model) or 0.1RPM (digital model)
1.0bar discharge pressure
(may be increased depending on tube selection)
Anlogue or digital inputs for remote control and monitoring
Can set desired flow rate on digital model
Reglo Quick tubing pump
User friendly pump-head with rapid tube change
Single channel, 4 rollers
1.5bar discharge pressure (may be increased depending on tube selection)
3.2 to 160RPM speed control, 1% resolution
2.1 to 130ml/min flow rate with 3.2mm i.d. tube
4.6 to 230ml/min flow rate with 4.8mm i.d. tube
Analogue inputs for remote start/stop/rotation and speed control
Speed output signal capable
Flowmaster
Highest capacity tube pump in the ISMATEC range
37 to 13000ml/min flow range
2.0bar discharge pressure (depending on tube selection)
Single channel, 3 convex stainless steel rollers
Automatically halts when tube bed open
5 to 500RPM speed range, resolution 0.1 RPM
Analogue inputs for start/stop/rotation/autostart. speed control. Digital outputs (error, okay, busy)
IP65 enclosure protection
Ecoline
Economical and Powerful, Stackable Dispensing Pumps
The Ecoline range of ISMATEC tubing pumps feature high flow rates and simple operations. With single and multichannel options available these are suitable for applications where complex control is not required. Despite the simple robust design, they still feature analogue inputs for controlling various functions.
Ecoline VC/MSCA8-6 & VC/MSCA4-12
0.005 to 150ml/min (CA8-6) or 0.003 to 83ml/min (CA4-12) flow range
8 channel, 6 rollers per channel (12 rollers for CA4-12)
click 'n' go cassettes for rapid tube changes
1 bar discharge pressure (may be increased depending on tube selection)
3.5 to 350 RPM speed range, 1% speed resolution
2 digit potentiometer
IP30 enclosure protection
Analogue inputs for remote start/stop/rotation and speed control
Ecoline VC Easy-Load
0.23 to 1600ml/min flow range
Single channel, 3 rollers
Easily accessable pump-head, polysulfone construction
Suitable for applications requiring frequent tube changes
1.5bar discharge pressure (may be increased depending on tube selection)
3.5 to 350 RPM speed range, 1% speed resolution
2 digit potentiometer, analogue inputs for remote start/stop/rotation and speed control
IP30 enclosure protection
Ecoline VC-360
0.25 to 1300ml/min flow range
Single channel, 3 convex rollers for gentle treatment of liquid and tube
Hinged tube bed for easy and rapid tube changeover
1.5bar discharge pressure (may be increased depending on tube selection)
3.5 to 350 RPM speed range, 1% speed resolution
2 digit potentiometer
Analogue inputs for remote start/stop/rotation and speed control
IP30 enclosure protection
Ecoline VC-280 & VC-380
1.7 to 5400ml/min (VC-280) and 1.6 to 5000ml/min (VC-380)
Single channel with 2 or 3 convex rollers for gentle treatment of fluid and tube
Exchangeable rotor for different applications (ie lower pulsation versus higher flow rates)
3.5 to 350 RPM speed range, 1% speed resolution
2 digit potentiometer
Analogue inputs for remote start/stop/rotation and speed control
IP30 enclosure protection
MS-CA Stand-mounted Pumps
Save Space with Stand-mounted Pumps
MS-CA stand-mount pump
0.021 to 26ml/min flow rate per channel
2 or 4 channels
6 or 8 rollers
Utilises click 'n' go cassettes for rapid tube changeover
1.0bar discharge pressures (may be increased depending on tube selection)
Fixed speed, 20, 40 , or 60 RPM
Different tube sizes per channel can be used
